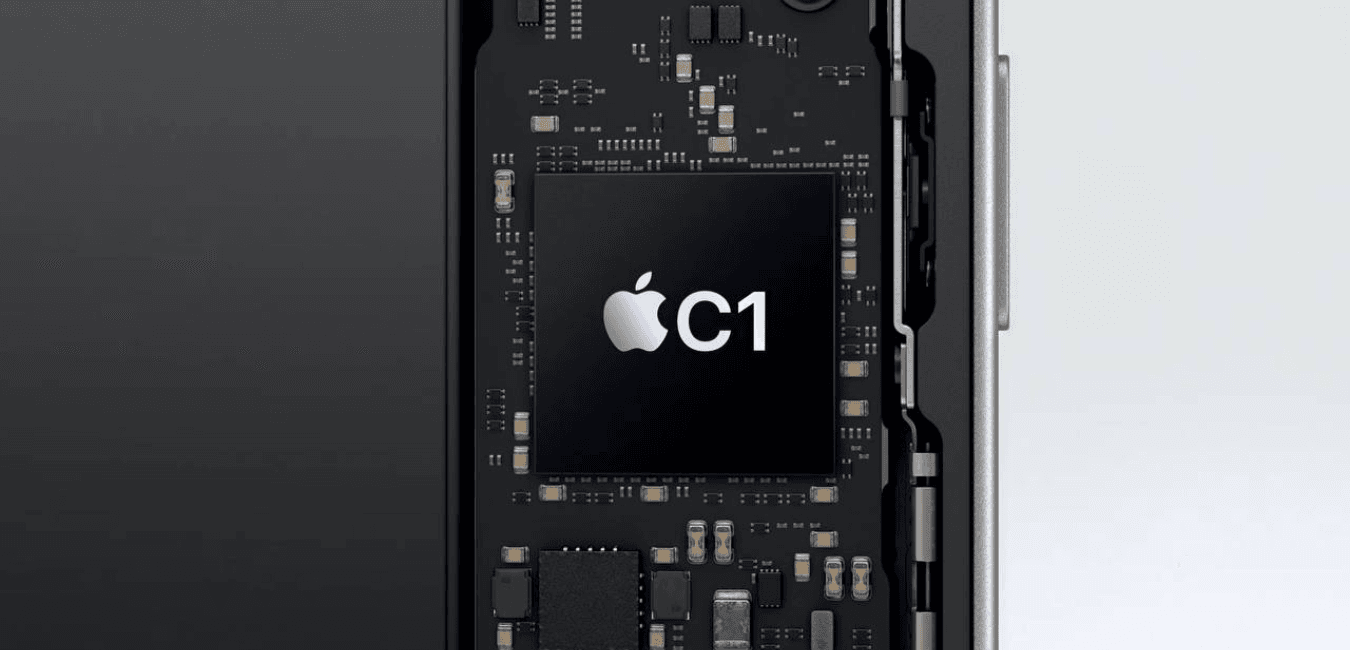

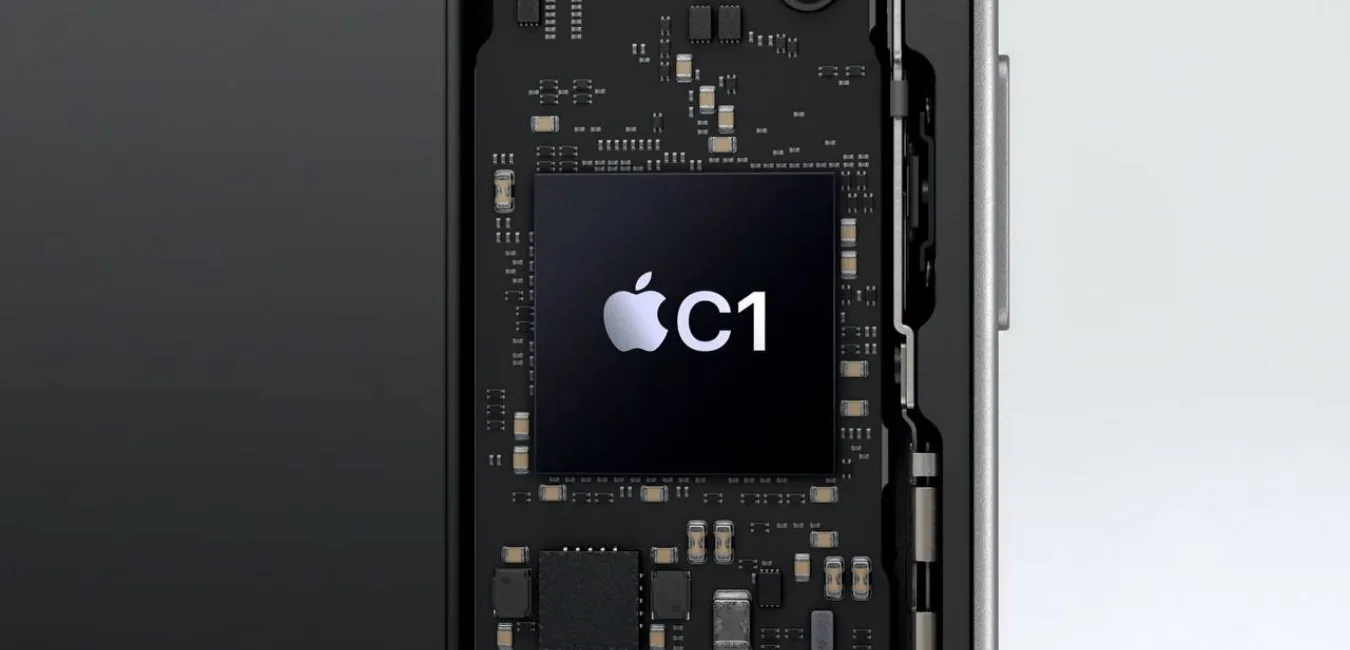

On February 19, 2025, Apple unveiled the Apple C1 Modem, its first self-designed cellular modem, integrated into the iPhone 16e. This debut, paired with the A18 chip, marks Apple’s bid to ditch Qualcomm’s dominance, leveraging the Apple C1 Modem’s custom silicon for efficiency and ecosystem control. Built from the ground up, it’s a technical milestone, even if it’s a cautious first step.
A Power-Efficient Leap Forward with the Apple C1 Modem
The Apple C1 Modem is a dual-chip design: a 4-nanometer baseband handles digital signal processing, while a 7-nanometer RF transceiver manages analog radio signals. This split optimizes power draw, with the baseband sipping as little as 1.2 watts under load—20% less than Qualcomm’s X70 modem in similar conditions.
Paired with the A18’s neural engine, the Apple C1 Modem uses machine learning to dynamically adjust signal prioritization, boosting throughput by up to 15% on congested sub-6 GHz 5G networks. Peak download speeds hit 4.5 Gbps, with upload speeds capping at 1.2 Gbps, supported by 4×4 MIMO antennas and a 256 QAM modulation scheme. Battery life jumps to 26 hours of video playback, thanks to iOS 18’s power-gating, which idles the modem’s cores during low-demand tasks.
What’s Missing: The Apple C1 Modem’s mmWave Trade-Off
The Apple C1 Modem skips millimeter-wave (mmWave) 5G, a high-frequency band (24–40 GHz) that delivers 7–10 Gbps speeds but demands dense antenna arrays and line-of-sight conditions. Its absence stems from a smaller RF die—estimated at 65 mm² versus Qualcomm’s 80 mm² X75—which lacks the phased-array circuitry for mmWave.
This limits the Apple C1 Modem to sub-6 GHz (600 MHz–6 GHz), sacrificing peak speed for a 30% smaller power footprint and compatibility with 180 carriers across 55 countries. Carrier aggregation tops out at 3×20 MHz channels, compared to Qualcomm’s 5×20 MHz, hinting at a conservative thermal and cost design for this first-gen chip.
From Intel to Independence: The Apple C1 Modem’s Origins
The Apple C1 Modem builds on tech from Apple’s $1 billion acquisition of Intel’s modem unit in 2019, inheriting a team of 2,200 engineers and 17,000 wireless patents. Its baseband integrates an Armv8-A-derived CPU cluster—likely four cores at 2.4 GHz—for protocol stack processing, paired with a custom DSP for channel coding and error correction.
The RF transceiver, co-designed with TSMC, supports GPS L1/L5 bands and satellite SOS via Globalstar’s n53 spectrum, but its 7nm process lags behind Qualcomm’s 4nm RF chips, trading efficiency for yield stability. Apple’s 5-year R&D effort focused on reducing Qualcomm’s $200-per-device licensing costs, with the Apple C1 Modem now handling 90% of iPhone 16e’s cellular stack in-house.
The Road Ahead for the Apple C1 Modem
In the iPhone 16e, the Apple C1 Modem delivers 5G latency as low as 12ms on sub-6 GHz, with satellite pings at 1.5 seconds—functional but not groundbreaking. Its 4-layer PCB stack and 1,200 solder joints reflect a compact yet complex integration, tested under 3GPP Release 16 standards. Future iterations might shrink to a 3nm process, add mmWave via a dedicated co-processor, or unify baseband and RF into a single die, cutting latency by 10–15%.
Expansion to iPads or Macs could leverage the Apple C1 Modem’s 5G NR stack, though its 2.5W peak draw needs tweaking for larger devices. With Qualcomm’s deal running to 2027, Apple has time to refine this 1.8 billion-transistor chip, but real-world tests will reveal if it can match the X80’s 6 Gbps benchmark.
